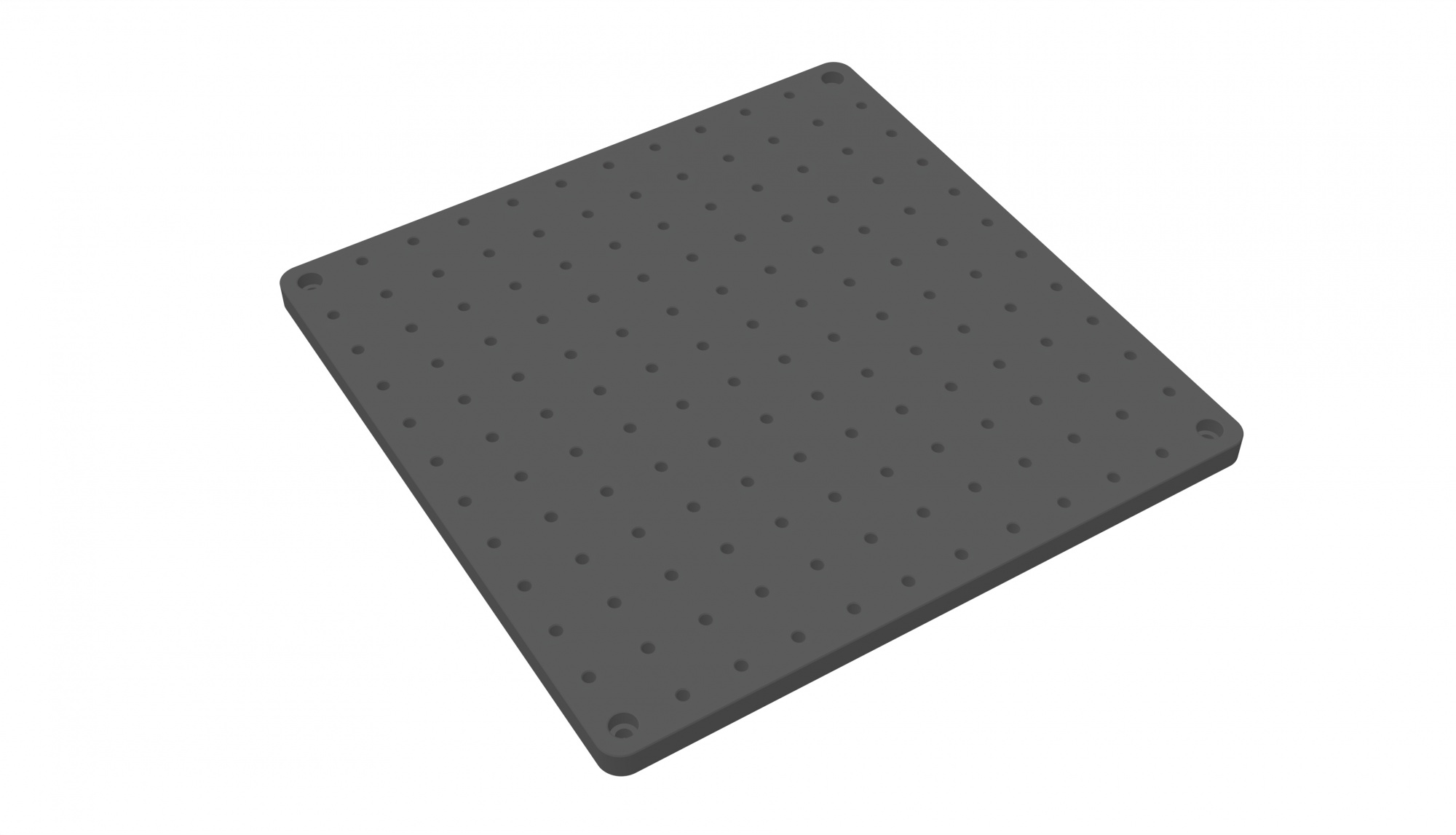

DVOB-L Series Solid Aluminum Optical Breadboards
ModelS Series中文页面 ↗
- Performance specifications:
- Premium hard aluminum alloy
- Flatness ±0.15 mm per 600 × 600 mm
- 13 mm overall thickness
- M6 mounting holes
- Hole spacing: 25 mm
- Edge spacing: 12.5 mm
- Four M6 counterbores, 12.5 mm edge spacing
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | S Series |
|---|---|
| Series | DVOB |
| Category | Optical Tables & Breadboards |
| Source SKU | 12261355 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

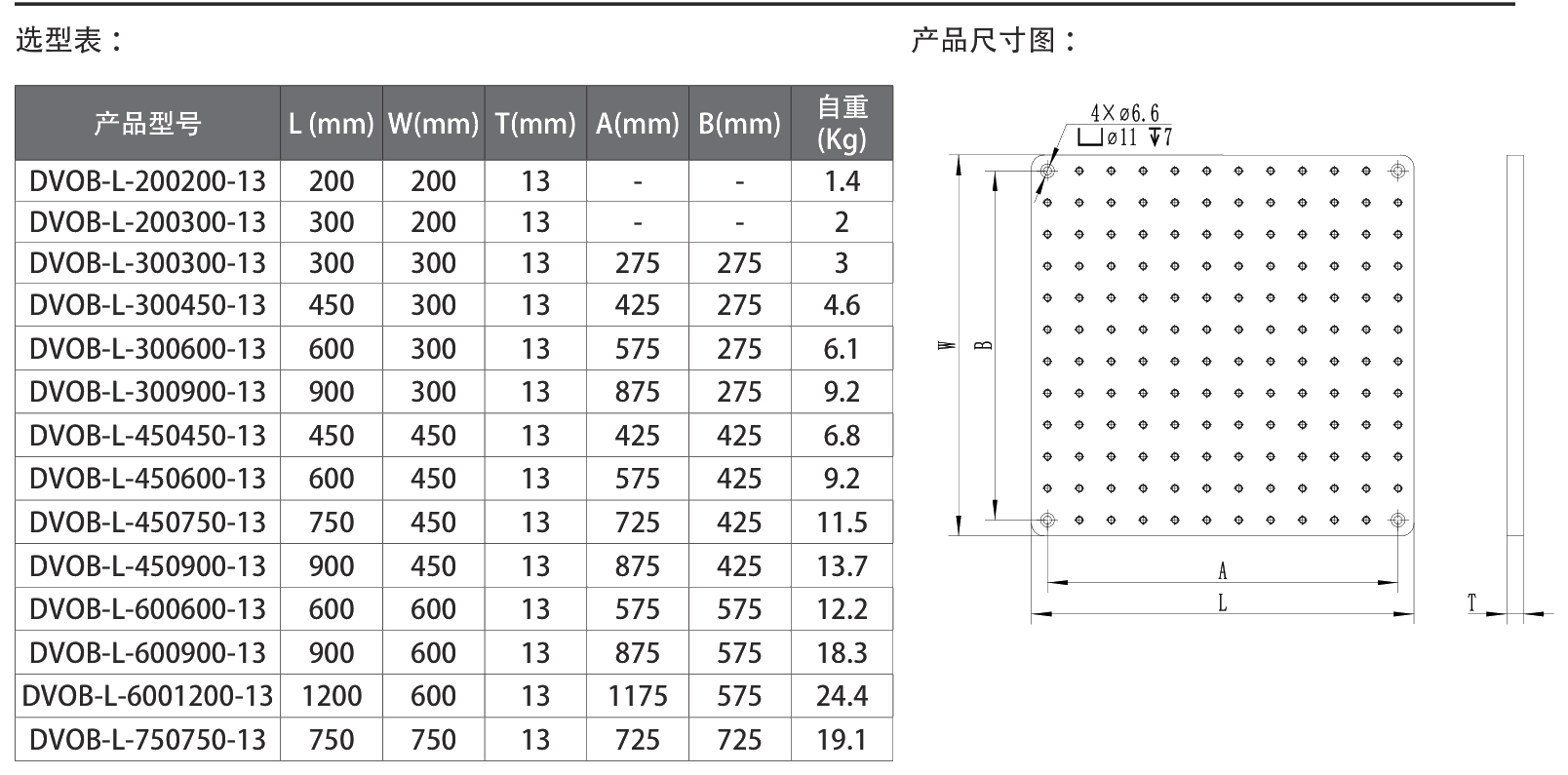

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
