Manual positioning stages for general photonics work: translation stages with dovetail or square-rail guides, rotation stages and goniometers with coarse/fine adjustment, precision vertical positioners with 2 µm sensitivity, and high-load scissor lift stages.

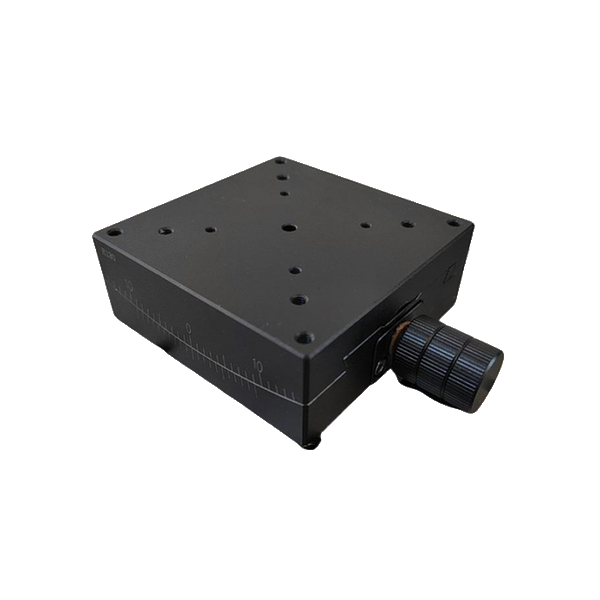

MAGC Series Manual Goniometers
- Worm-gear or micrometer drive
- Table sizes: multiple options
- Travel: multiple options
- Dovetail or curved crossed-roller guides
- Stackable for coincident rotation centers

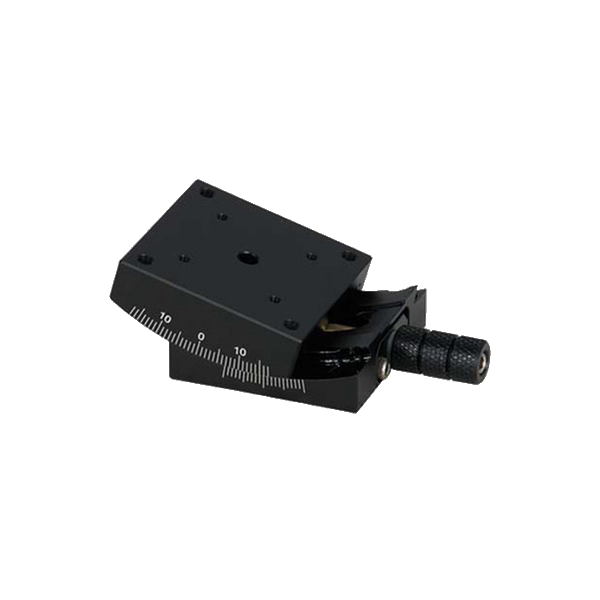

MAGD Series Manual Goniometers
- Worm-gear or micrometer drive
- Table sizes: multiple options
- Travel: multiple options
- Dovetail or curved crossed-roller guides
- Stackable for coincident rotation centers

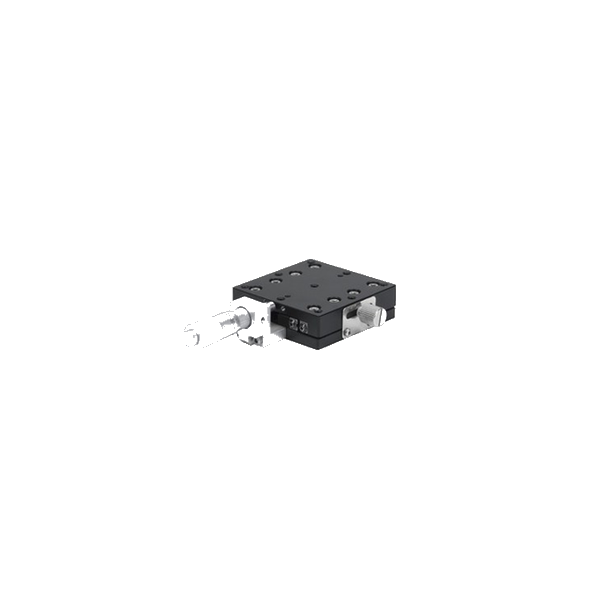

MALC13-60 Series Manual Translation Stages
- Single-axis drive with standard micrometer
- 60 × 60 mm platform
- Travel 13 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive

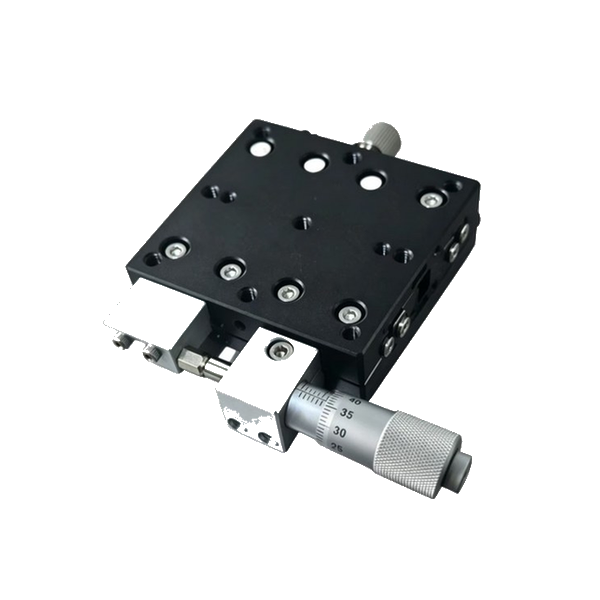

MALC25-100 Series Manual Translation Stages
- Single-axis drive with standard micrometer
- 100 × 100 mm platform
- Travel 25 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive
MALC25-65 Series Manual Translation Stages
- Single-axis drive with standard micrometer
- 65 × 65 mm platform
- Travel 25 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive
MALC25-80 Series Manual Translation Stages
- Single-axis drive with standard micrometer
- 80 × 80 mm platform
- Travel 25 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive

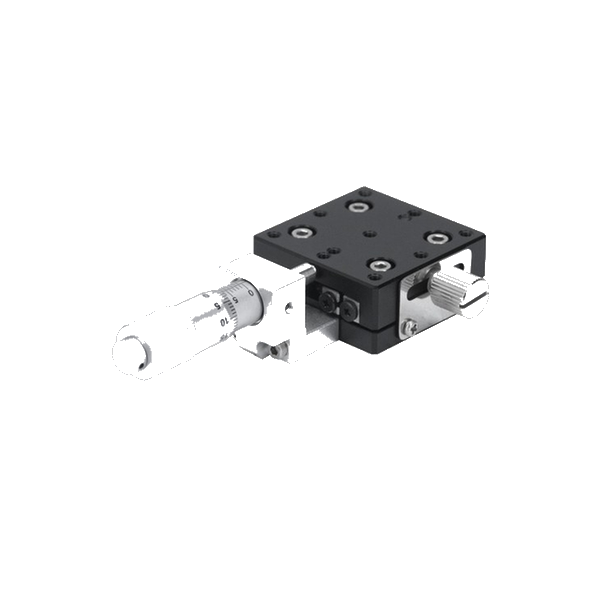

MALC3-40 Series Manual Translation Stages
- Single- or dual-axis drive with standard micrometer
- 40 × 40 mm platform
- Travel 13 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive

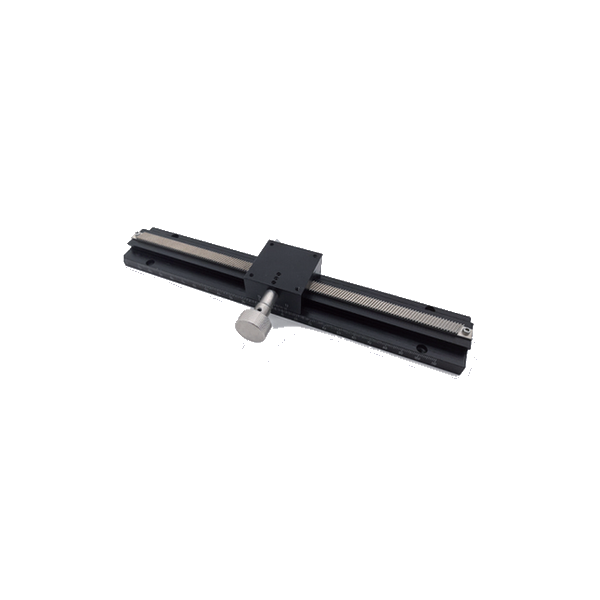

MALD40 Series Manual Translation Stages
- Single-axis rack-and-pinion drive
- 60 × 60 mm platform
- Travel 60–460 mm, customizable
- Dovetail guides
- Platform extensions available on request
MALD40 Series Manual Translation Stages
- Single-axis rack-and-pinion drive
- 60 × 60 mm platform
- Travel 60–460 mm, customizable
- Dovetail guides
- Platform extensions available on request
MALL150 Series Manual Translation Stages
- 150 × 150 mm platform
- Travel: multiple options, customizable
- Square-rail guide
- Platform extensions available on request

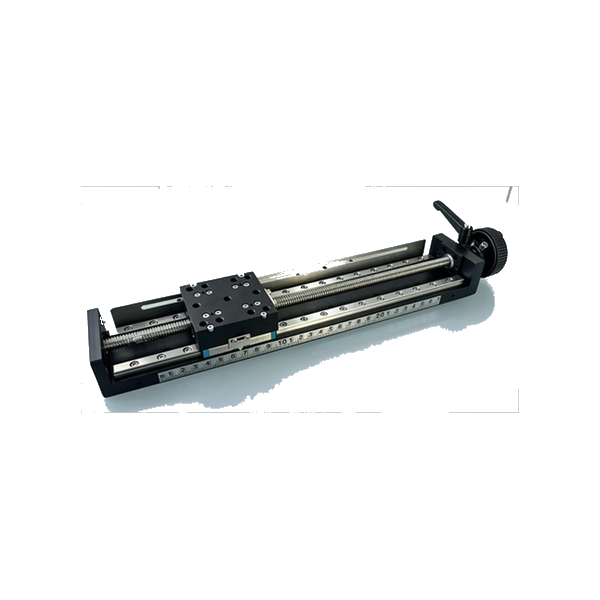

MALL65 Series Manual Translation Stages
- 65 × 65 mm platform
- Travel: multiple options, customizable
- Linear ball guide
- Platform extensions available on request

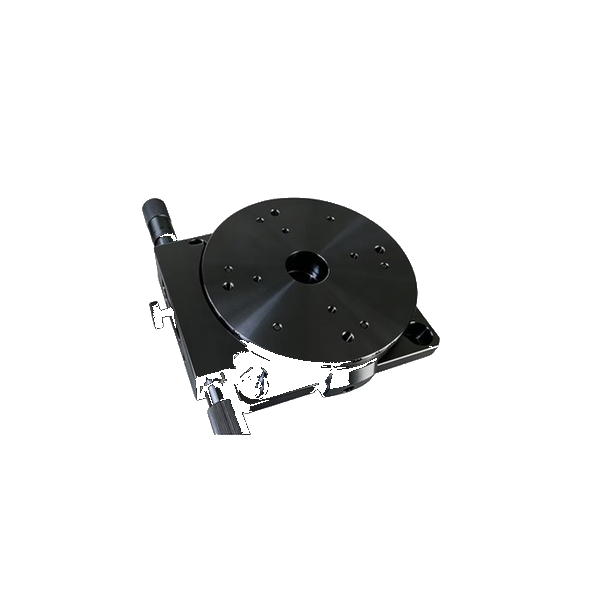

MARC Series Manual Rotation Stages
- Single-axis drive with standard micrometer
- Table sizes: multiple options
- Coarse 360°, fine ±5° or ±10°
- Lapped or crossed-roller bearing guides
MARD10 Series Manual Rotation Stages
- Single-axis drive with standard micrometer
- Table sizes: multiple options
- Coarse 360°, fine ±5° or ±10°
- Lapped or crossed-roller bearing guides

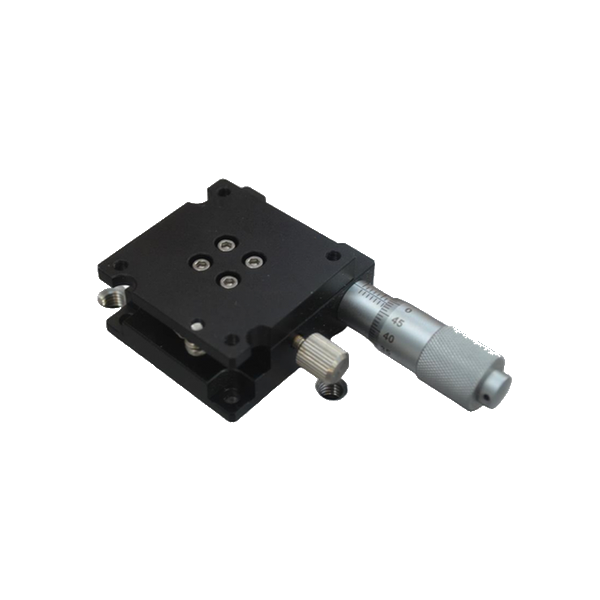

MARD20 Series Manual Rotation Stages
- Single-axis drive with standard micrometer
- Table sizes: multiple options
- Coarse 360°, fine ±5° or ±10°
- Lapped or crossed-roller bearing guides

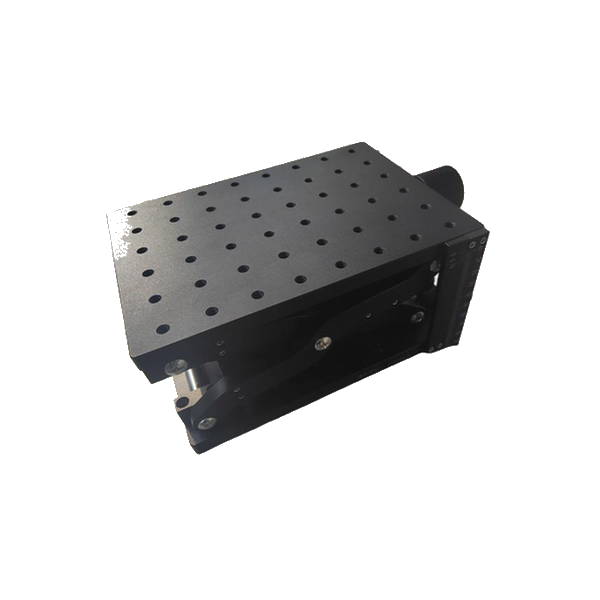

MAV Series Scissor Lift Stages
- Travel 60 / 110 / 240 mm
- Center load capacity 20–40 kg
- Table sizes: multiple options, customization available

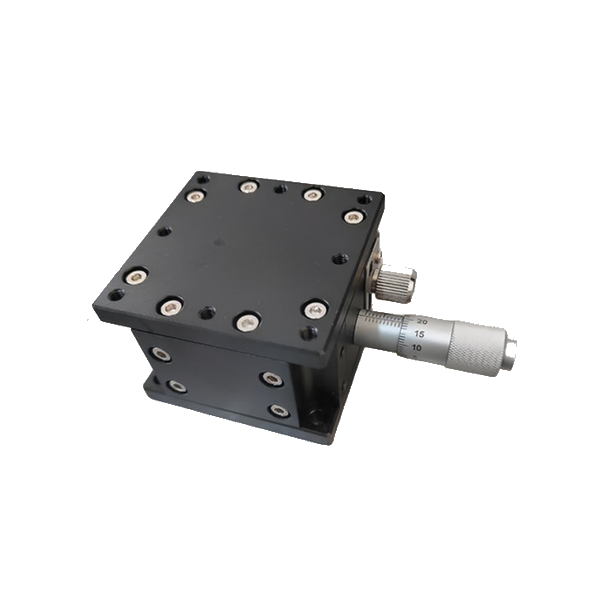

MAVC10 Series Precision Vertical Positioners
- Travel 6–10 mm
- Sensitivity 2 µm
- Table sizes: multiple options, customization available
MAVC10 Series Precision Vertical Positioners
- Travel 10 mm
- Sensitivity 2 µm
- Table sizes: multiple options, customization available
MCGD Series Brass Goniometers
- Worm-gear or micrometer drive
- Table sizes: multiple options
- Travel: multiple options
- Dovetail or curved crossed-roller guides
- Stackable for coincident rotation centers
MSGC Series Manual Goniometers
- Worm-gear or micrometer drive
- Table sizes: multiple options
- Travel: multiple options
- Dovetail or curved crossed-roller guides
- Stackable for coincident rotation centers
MSLB06-25 Series Manual Translation Stages
- Single- or dual-axis drive with standard micrometer
- 65 × 65 mm platform
- Travel 25 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive
- Additional specifications available on request
MSLB13-40 Series Stainless Steel Manual Translation Stages
- Single- or dual-axis drive with standard micrometer
- 40 × 40 mm platform
- Travel 13 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive
- Additional specifications available on request
MSLB13-60 Series Stainless Steel Translation Stages
- Single- or dual-axis drive with standard micrometer
- 60 × 60 mm platform
- Travel 13 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive
- Additional specifications available on request

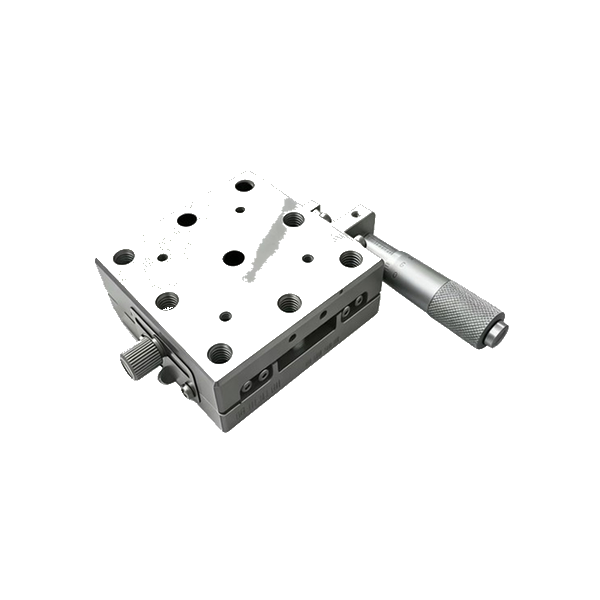

MSLB25-65 Series Manual Translation Stages
- Single- or dual-axis drive with standard micrometer
- 65 × 65 mm platform
- Travel 25 mm
- Micrometer graduation: 10 µm
- Available with center, left or right drive
- Additional specifications available on request

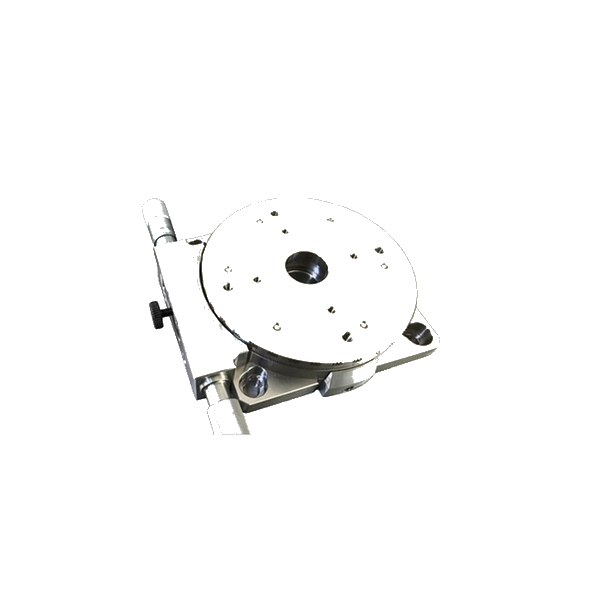

MSRC Series Manual Rotation Stages
- Single-axis drive with standard micrometer
- Table sizes: multiple options
- Coarse 360°, fine ±5° or ±10°
- Lapped or crossed-roller bearing guides

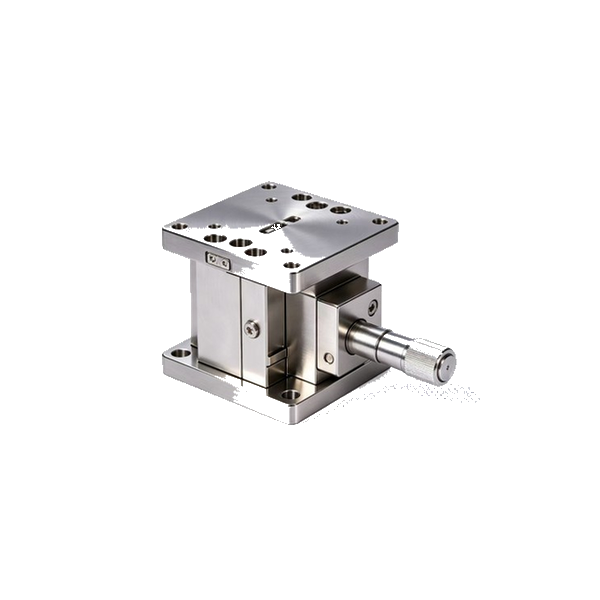

MSVL Series Stainless Steel Manual Vertical Positioners
- Travel 6–10 mm
- Linear ball guide
- Center load capacity 2–3 kg
- Sensitivity 2 µm

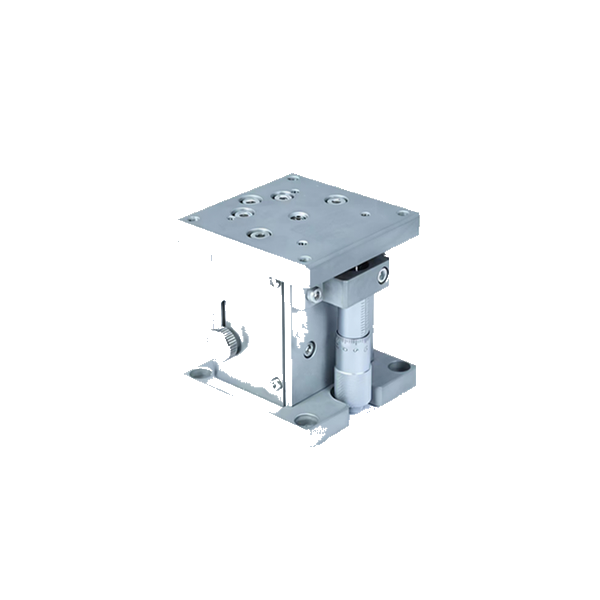

MSVLxx-Z Series Stainless Steel Manual Vertical Positioners
- Travel 6–10 mm
- Linear ball guide
- Center load capacity 2–3 kg
- Sensitivity 2 µm
Note: product specifications are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
