MAGC Series Manual Goniometers
ModelMAGC Series中文页面 ↗
- Worm-gear or micrometer drive
- Table sizes: multiple options
- Travel: multiple options
- Dovetail or curved crossed-roller guides
- Stackable for coincident rotation centers
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MAGC Series |
|---|---|
| Series | MAGC |
| Category | Manual Stages |
| Motion | Goniometer |
| Available Models | Worm gear drive: MAGC50-60, MAGC75-60, MAGC50-65, MAGC75-65; micrometer drive: MAGC40-40-L, MAGC40-40-R, MAGC60-40-L, MAGC60-40-R, MAGC50-60-L, MAGC50-60-R, MAGC75-60-L, MAGC75-60-R (12 models; crossed roller guide, tables 40/60/65 mm, pivot heights 40–75 mm) |
| Naming Convention | M=manual; A=aluminium; G=goniometer (tilt); C=crossed roller guide (D=dovetail guide); leading digit=pivot height (mm); trailing digits=table size (mm); L/R=left/right micrometer drive (no suffix=worm gear handwheel drive) |
| Center Load | 3 kg (micrometer type)/ 5 kg（worm-gear type） |
| Weight | 0.14 / 0.15 / 0.3 / 0.3 kg (micrometer type)；0.36 / 0.36 / 0.42 / 0.42 kg（worm-gear type） |
| Drive Position | worm-gear type：handwheelcenter drive；micrometer type：L left / R right |
| Table Size | 40×40 / 60×60 / 65×65 mm |
| Guide Type | Crossed roller guide |
| Body Material | Aluminum alloy, black anodized |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261405 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

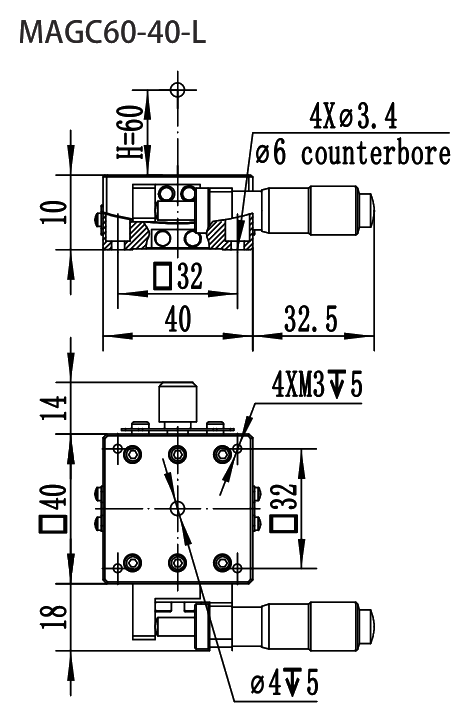

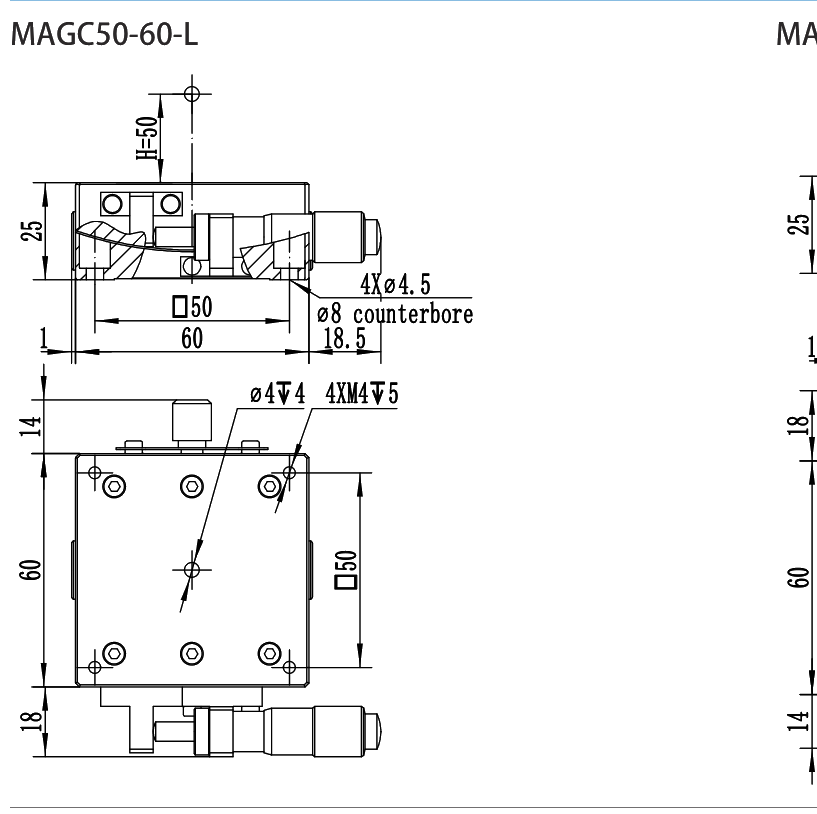

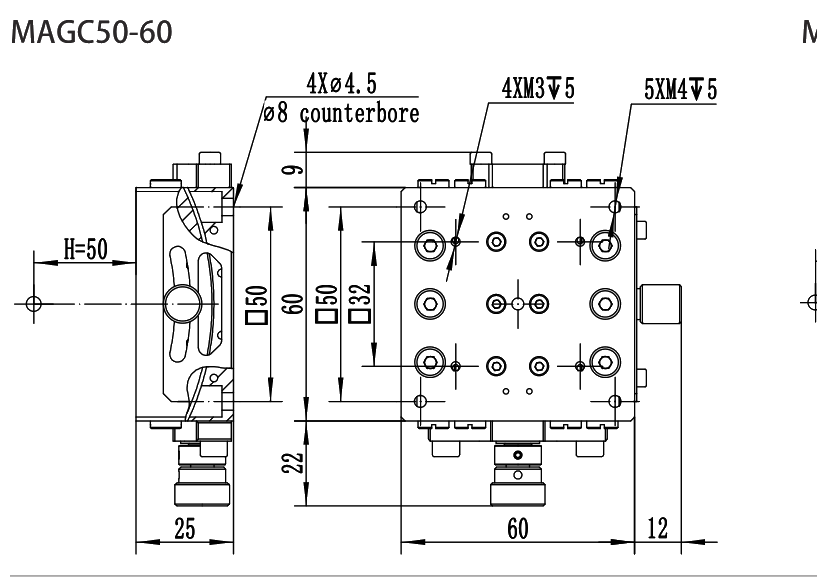

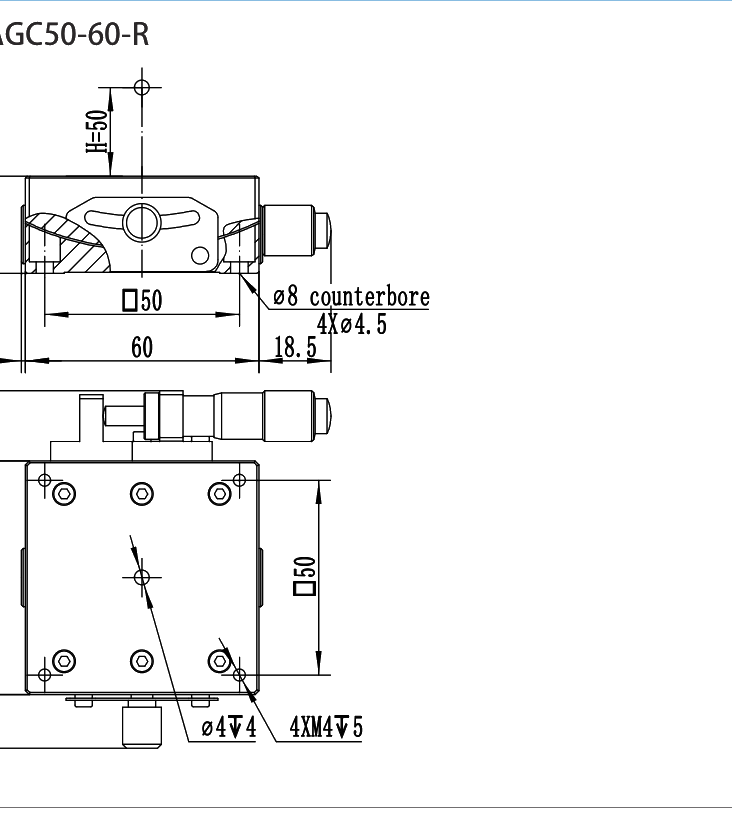

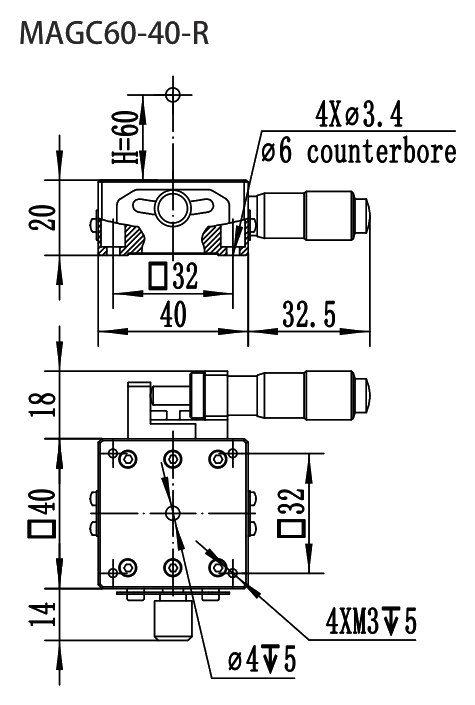

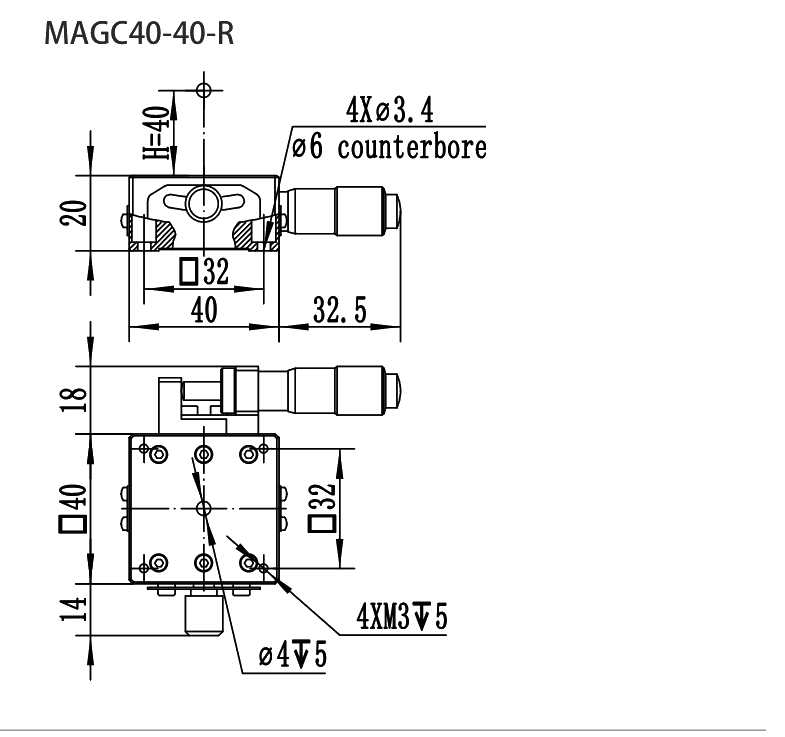

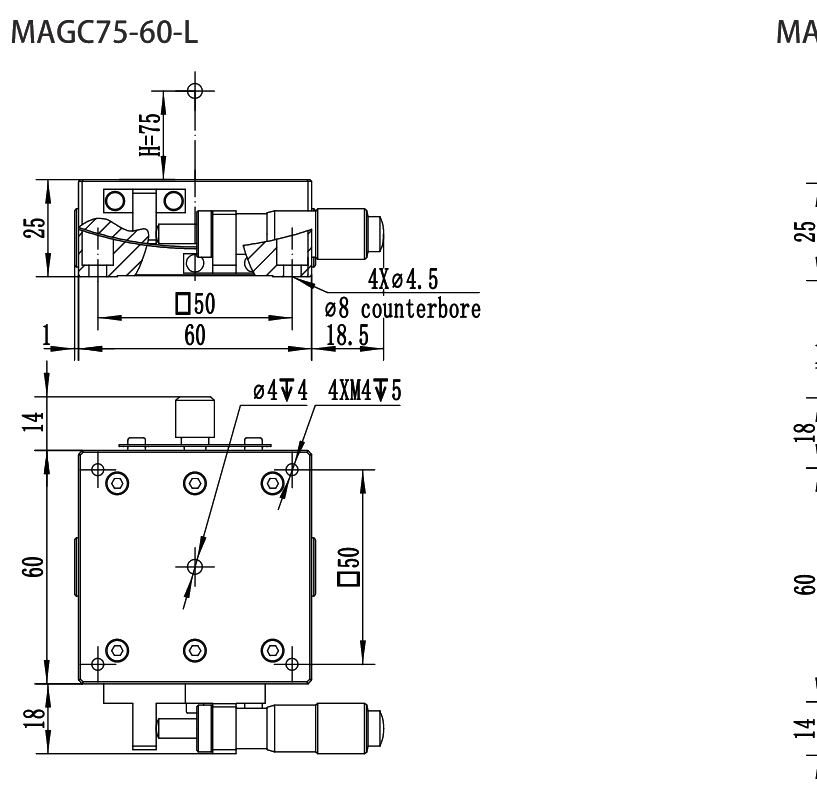

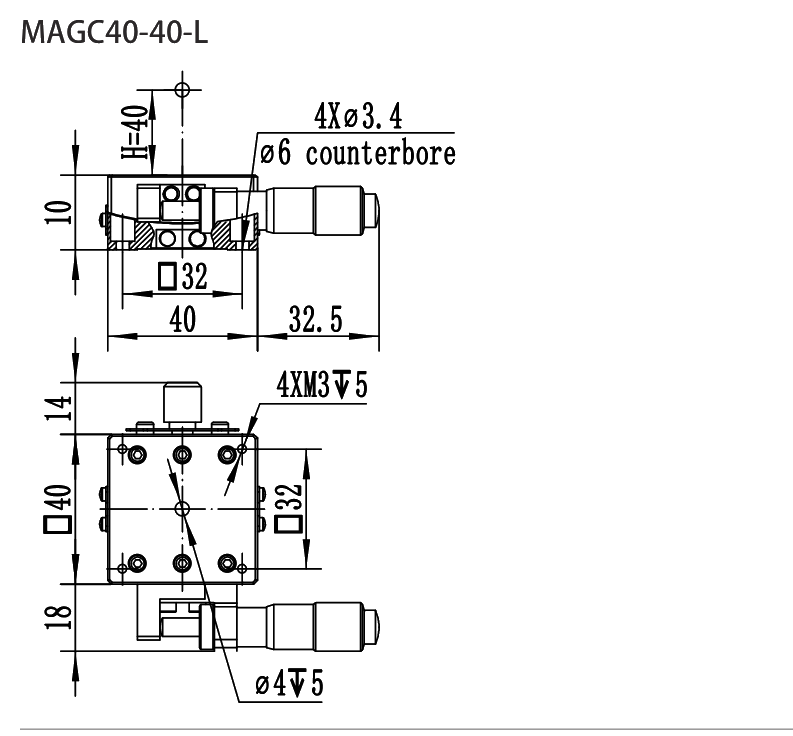

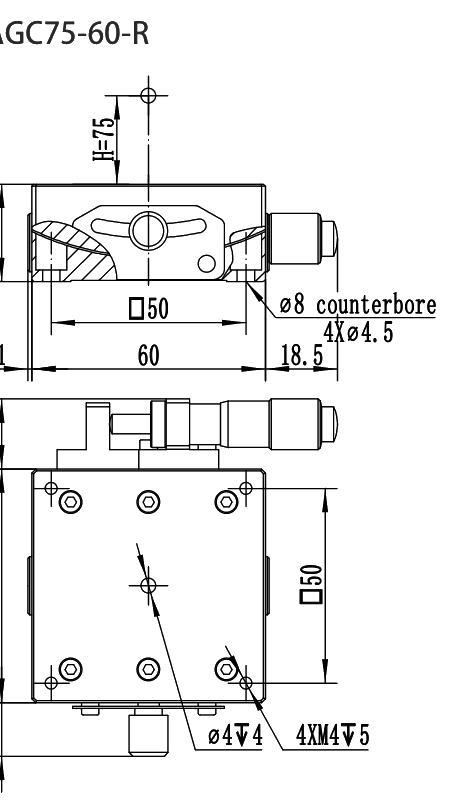

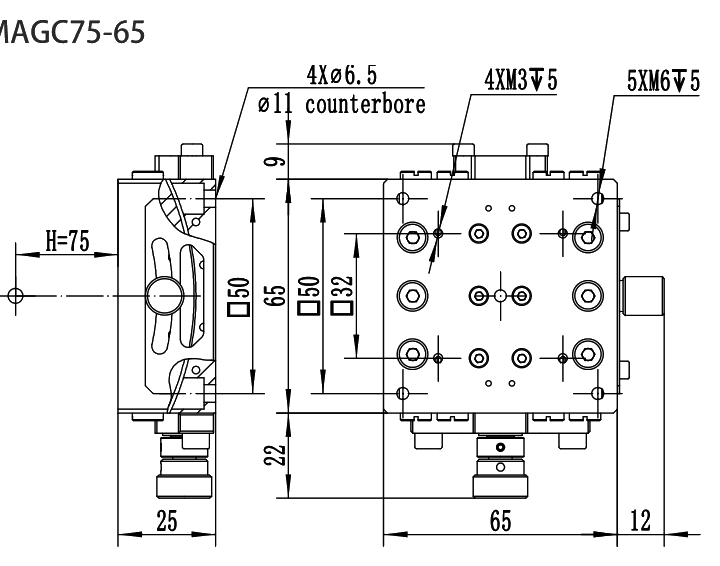

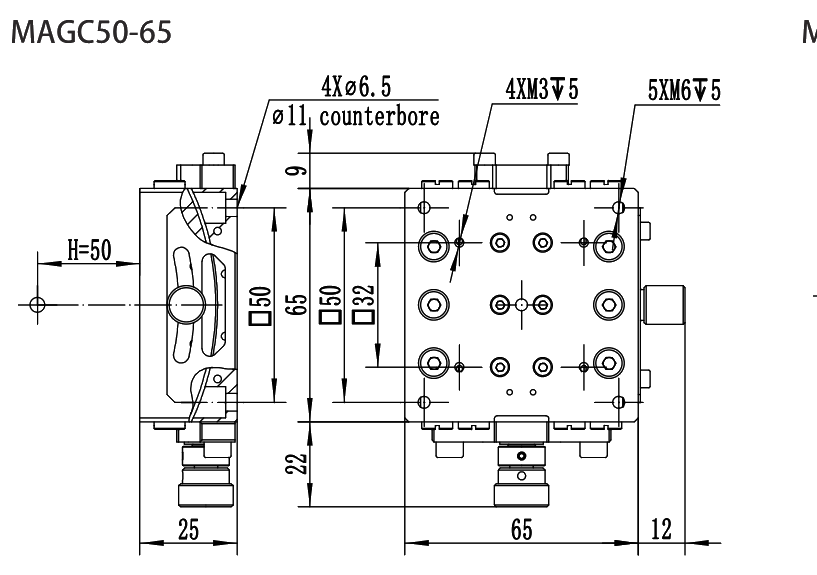

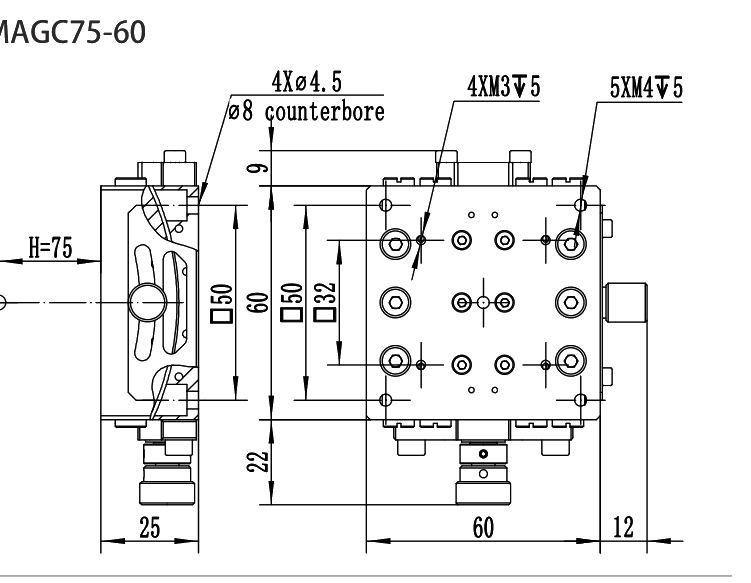

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
