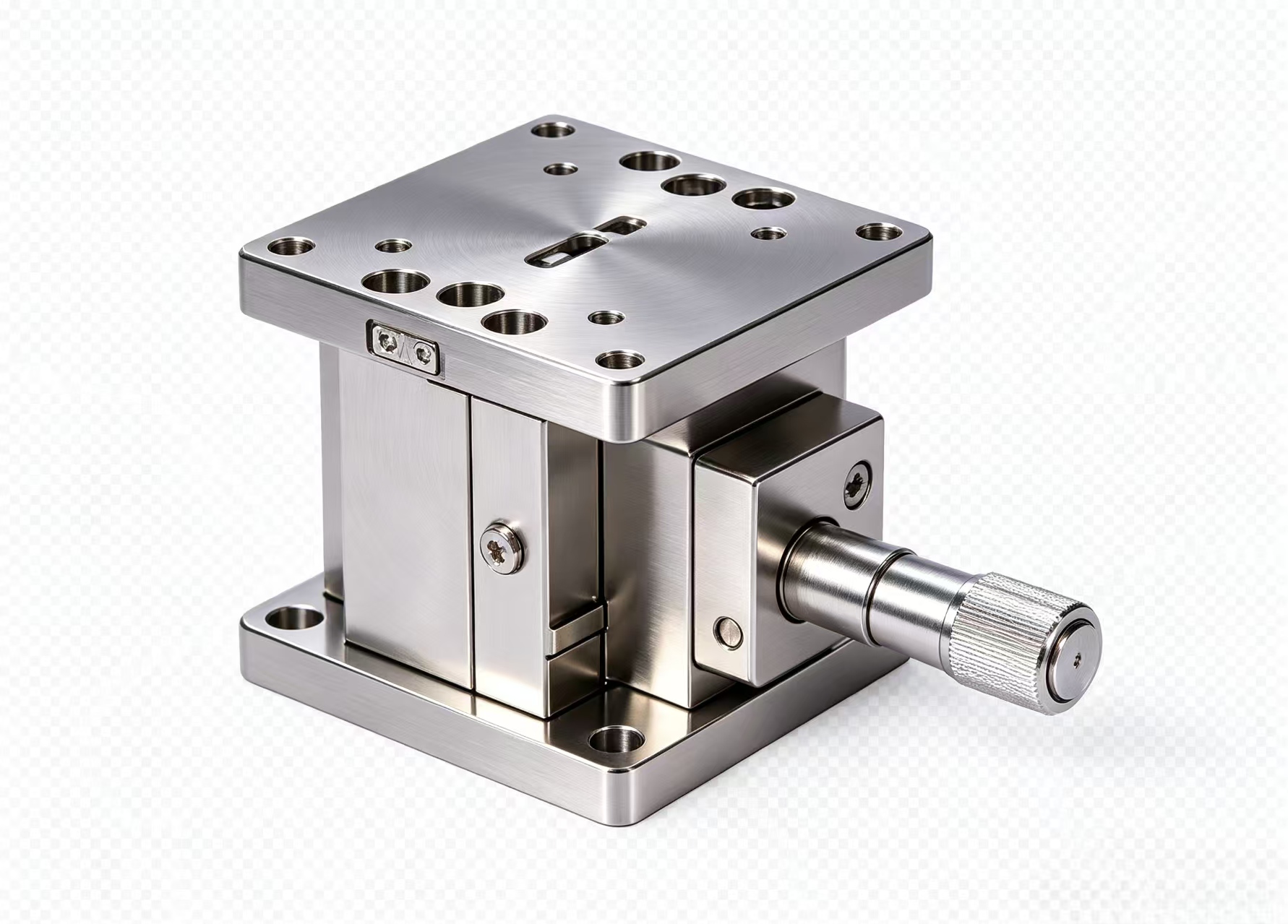

MSVL Series Stainless Steel Manual Vertical Positioners
ModelMSVL Series中文页面 ↗
- Travel 6–10 mm
- Linear ball guide
- Center load capacity 2–3 kg
- Sensitivity 2 µm
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | MSVL Series |
|---|---|
| Series | MSVL |
| Category | Manual Stages |
| Motion | Lift |
| Available Models | MSVL06-40, MSVL10-60, MSVL10-65, MSVL10-90 (4 models; horizontal-drive lift stages, travel 6/10 mm, tables 40/60/65/90 mm, linear guide, stainless steel, load 2–3 kg) |
| Naming Convention | MS=manual + stainless steel; V=vertical lift; L=linear guide (C=crossed roller guide); leading digit=travel (mm); trailing digits=table size (mm); suffix Z=vertical drive (no suffix=horizontal drive); H35/H50=minimum height 35/50 mm |
| Center Load | 2 / 3 / 3 / 3 kg |
| Weight | 0.9 / 1.2 / 1.4 / 2.9 kg |
| Drive Position | Horizontal (with standard micrometer) |
| Table Size | 40×40 / 60×60 / 65×65 / 90×90 mm |
| Guide Type | Linear guide |
| Body Material | Stainless steel |
| Static Parallelism | 0.1 mm |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261401 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image
Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
