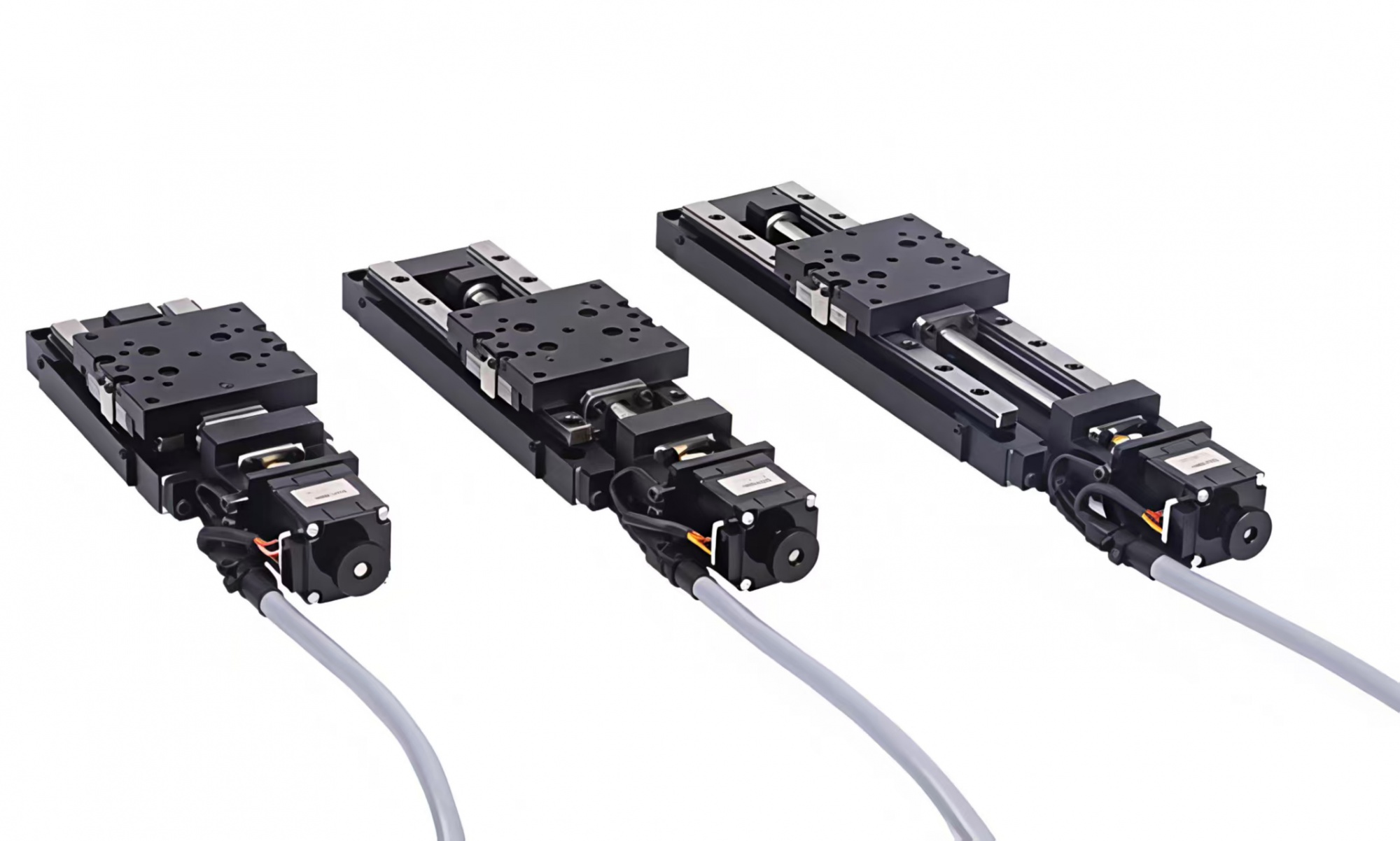

EALL100-60-M6 Motorized Linear Stage
ModelEALL100-60-M6中文页面 ↗
- 60 × 60 mm platform
- Travel 100 mm
- 2-phase stepper motor standard; 5-phase optional
- Repeatability <0.5 µm
- 50 × 50 mm M6 counterbores for direct mounting on isolation tables
- Customization available
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | EALL100-60-M6 |
|---|---|
| Series | EALL |
| Category | Motorized Stages |
| Motion | Translation |
| Travel | 100mm |
| Lead Screw Pitch | 2mm |
| Center Load | 5kg |
| Weight | 0.7kg |
| Positioning Accuracy | <25μm |
| Repeatability | <±3.0μm |
| Resolution (1/8 step) | 1.25μm |
| Minimum Step | 2.0μm±10% |
| Max. Speed | 20mm/s |
| Table Size | 60mm×60mm |
| Guide Type | Linear guide |
| Body Material | Aluminum alloy, black anodized |
| Straightness | <5μm |
| Parallelism | <10μm |
| Motor | 2-phase 28 stepper motor |
| Step Angle | 1.8° |
| Current | 1.3A/phase |
| Holding Torque | 0.0785N·m |
| Recommended Controller | DH2x42, DH3x42, DH5x42, DH6x42 |
| Limit Sensors | 2 × PM-L25 |
| Origin Sensor | 1 × PM-L25 |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261382 |
