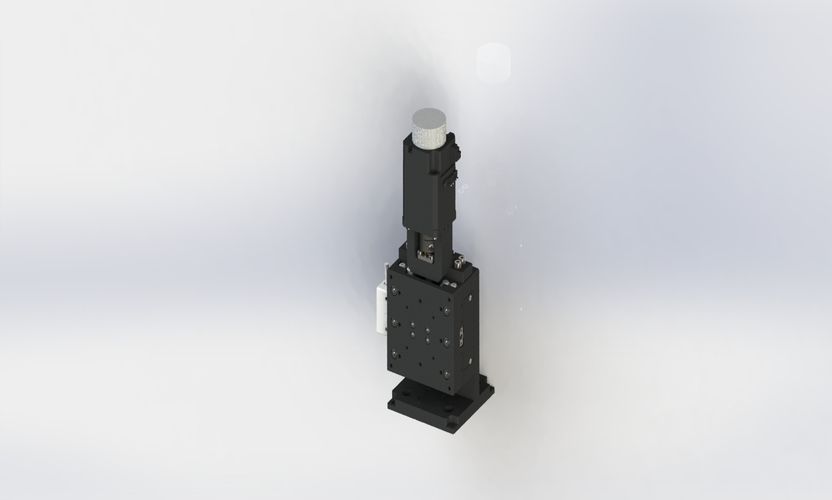

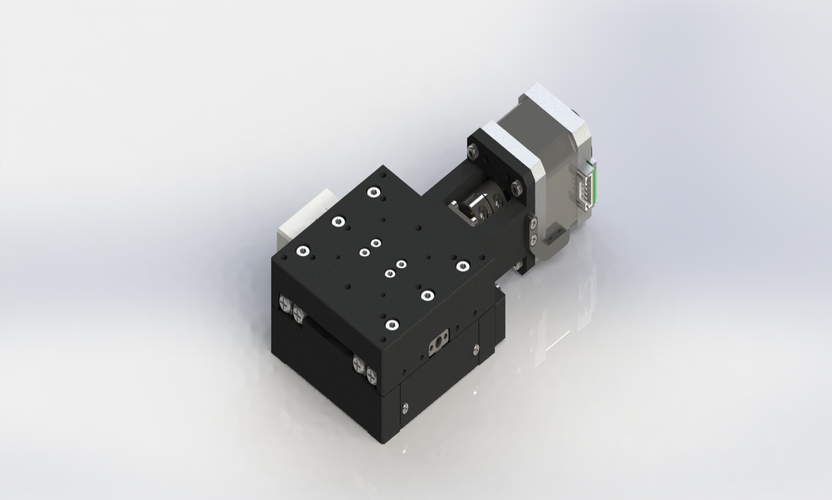

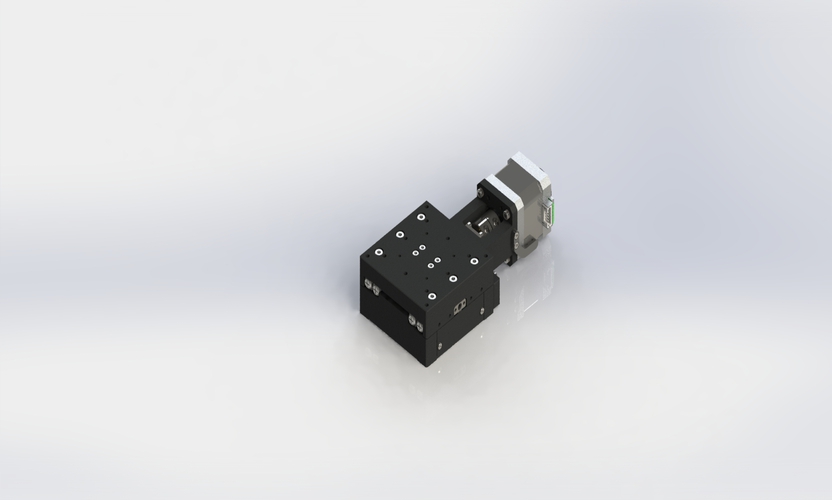

EALC30-80-ST542 Precision Motorized Linear Stage
ModelEALC30-80-ST542中文页面 ↗
- Precision motorized linear stage for compact, high-frequency applications. Hard aluminum body with black anodized finish is durable and attractive; crossed-roller guides with precision grinding deliver high stiffness, load capacity and durability, with excellent motion accuracy and micro-steps below 1 µm.
- Ideal for automation equipment and precision instruments with limited space, size or weight, and for production lines requiring short travel at high repetition rates; widely used in 3C, laser processing and medical applications.
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | EALC30-80-ST542 |
|---|---|
| Series | EALC |
| Category | Motorized Stages |
| Motion | Translation |
| Travel | 30mm |
| Lead Screw Pitch | 2mm |
| Center Load | 10kg |
| Weight | 1.2kg |
| Positioning Accuracy | <15μm |
| Repeatability | <±2.0μm |
| Resolution (1/8 step) | 1.25μm |
| Minimum Step | 2.0μm±10% |
| Microstep | <1μm |
| Max. Speed | 20mm/s |
| Table Size | 80mm×80mm |
| Guide Type | Crossed roller guide |
| Body Material | Aluminum alloy, black anodized |
| Straightness | <5μm |
| Parallelism | <10μm |
| Motor | 2-phase 42 stepper motor |
| Step Angle | 1.8° |
| Current | 1.3A/phase |
| Holding Torque | 0.456N·m |
| Recommended Controller | DH2x42, DH3x42, DH5x42, DH6x42 |
| Limit Sensors | 2 × PM-L25 |
| Origin Sensor | 1 × PM-L25 |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261362 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
