EALL50-80-Z Motorized Linear Stage
ModelEALL50-80-Z中文页面 ↗
- 60 × 60 mm platform
- Travel 80 mm
- 2-phase stepper motor
- Repeatability <0.5 µm
- -G: linear encoder option
- -Z: vertical use
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

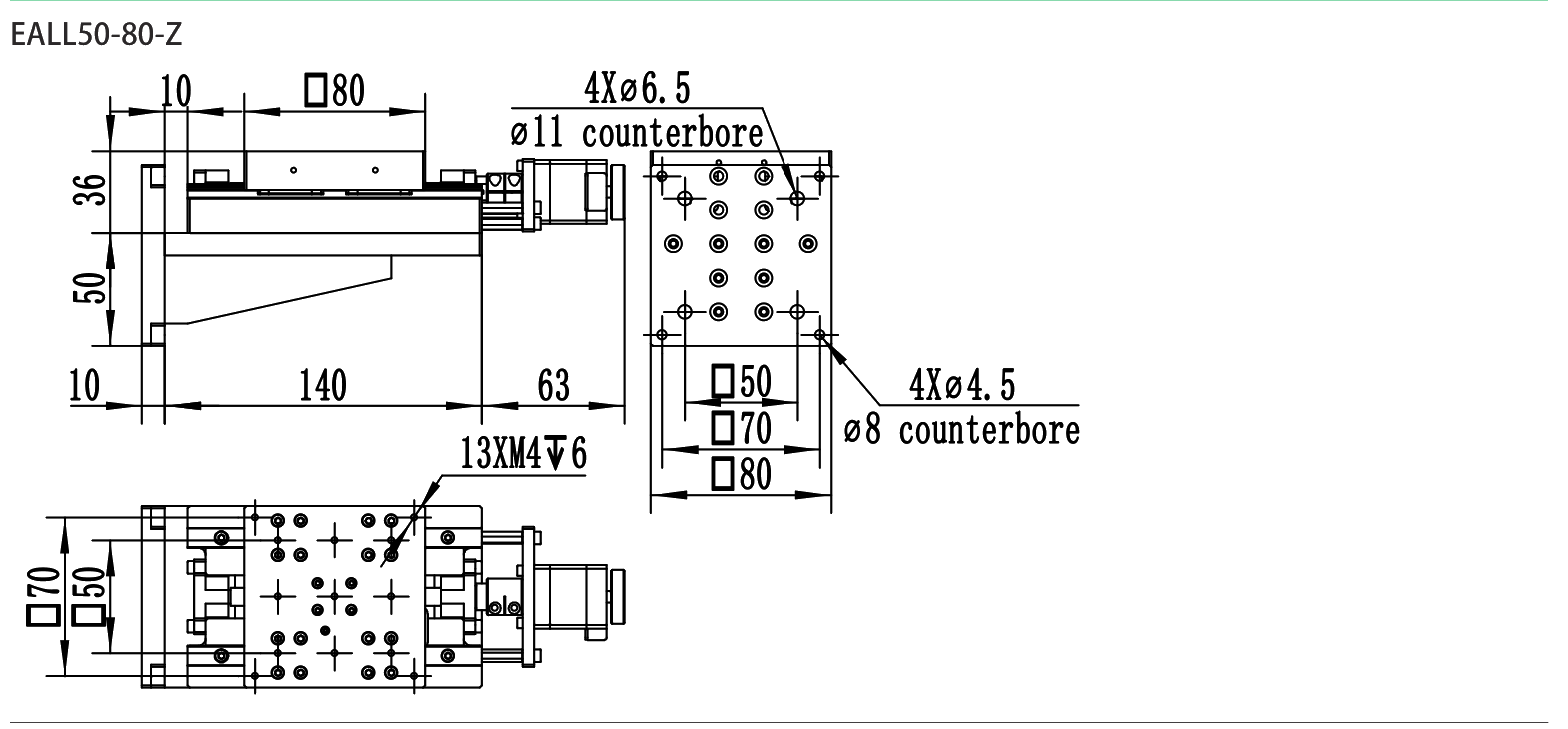

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
