EALL600-200-G Precision Motorized Linear Stage
ModelEALL600-200-G中文页面 ↗
- 200 × 200 mm platform
- Travel 600 mm
- 2-phase stepper motor
- Repeatability <0.5 µm
- -G: linear encoder option
- -Z: vertical operation
- Customization available
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | EALL600-200-G |
|---|---|
| Series | EALL |
| Category | Motorized Stages |
| Motion | Translation |
| Travel | 600mm |
| Lead Screw Pitch | 5mm |
| Center Load | 50kg |
| Weight | 21.5kg |
| Positioning Accuracy | <40μm |
| Repeatability | <±5.0μm |
| Resolution (1/8 step) | 3.125μm |
| Minimum Step | 5.0μm±10% |
| Max. Speed | 50mm/s |
| Table Size | 200mm×200mm |
| Guide Type | Linear guide |
| Body Material | Aluminum alloy, black anodized |
| Straightness | <25μm |
| Parallelism | <15μm/100mm |
| Motor | 2-phase 57 stepper motor |
| Step Angle | 1.8° |
| Current | 3.0A/phase |
| Holding Torque | 1.44N·m |
| Recommended Controller | DH2x57, DH3x57, DH5x57, DH6x57 |
| Limit Sensors | 2 × PM-L25 |
| Origin Sensor | 1 × PM-L25 |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261393 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

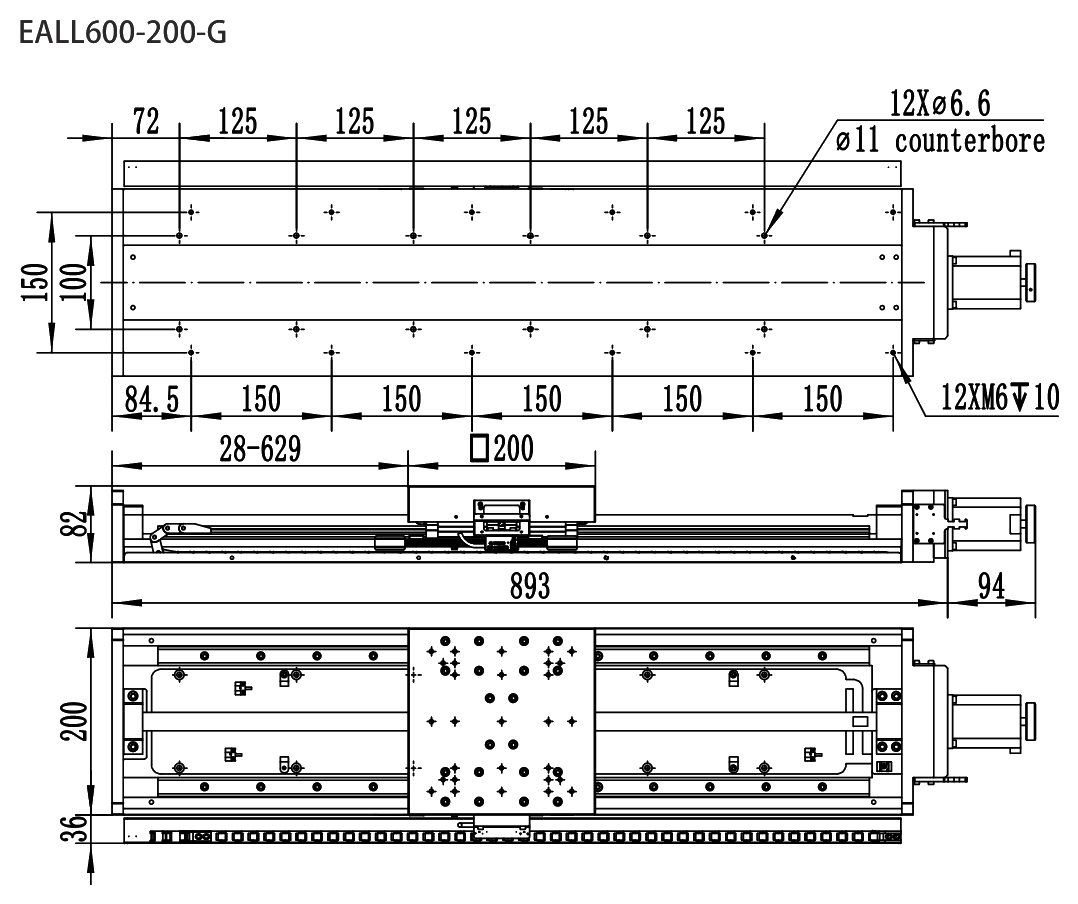

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
