EAVL04-70-ST528 Precision Motorized Lift Stage
ModelEAVL04-70-ST528中文页面 ↗
- 5-phase motor drive with ground ball screw
- Table sizes: multiple options, custom orders accepted
- Travel 4 mm or 10 mm
- Custom screw lead available
- Industrial-grade photoelectric switches, reliable
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | EAVL04-70-ST528 |
|---|---|
| Series | EAVL |
| Category | Motorized Stages |
| Motion | Lift |
| Travel | 4mm |
| Lead Screw Pitch | 2mm |
| Gear Ratio | ≈1.732:1 |
| Travel per Motor Rev. | ≈4mm |
| Center Load | 5kg |
| Weight | 0.7kg |
| Positioning Accuracy | <15μm |
| Repeatability | <±1μm |
| Resolution (full step) | ≈2.3μm |
| Minimum Step | 3μm±10% |
| Max. Speed | ≈11.5mm/s |
| Table Size | 60mm×60mm |
| Guide Type | Crossed roller guide |
| Body Material | Aluminum alloy, black anodized |
| Motor | 5-phase 28 stepper motor |
| Step Angle | 0.72° |
| Current | 1.3A/phase |
| Holding Torque | 0.0525N·m |
| Recommended Controller | DH5x42-ST, DH6x42-ST |
| Limit Type | Photoelectric sensor |
| Limit Sensors | 2 × PM-L25 |
| Origin Sensor | 1 × PM-L25 |
| Note | Specifications compiled from the product selection chart; refer to the latest factory data. |
| Source SKU | 12261350 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image

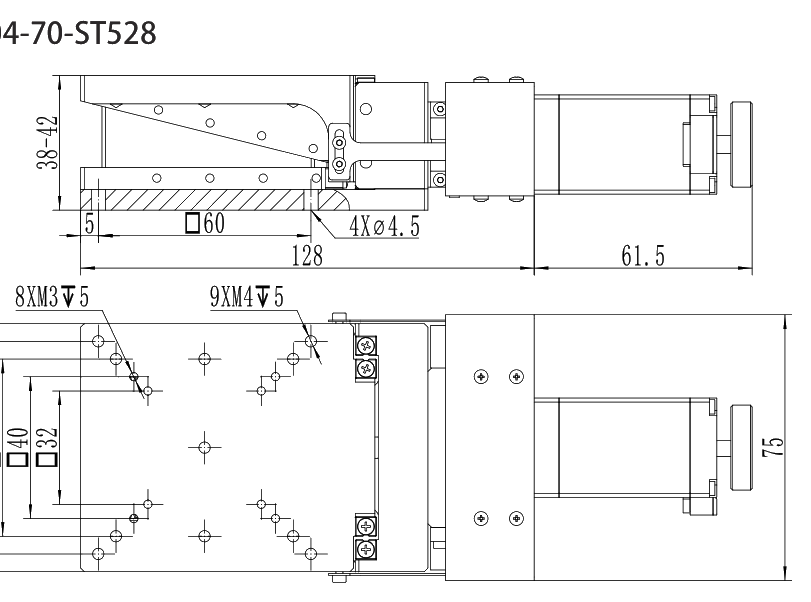

Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
