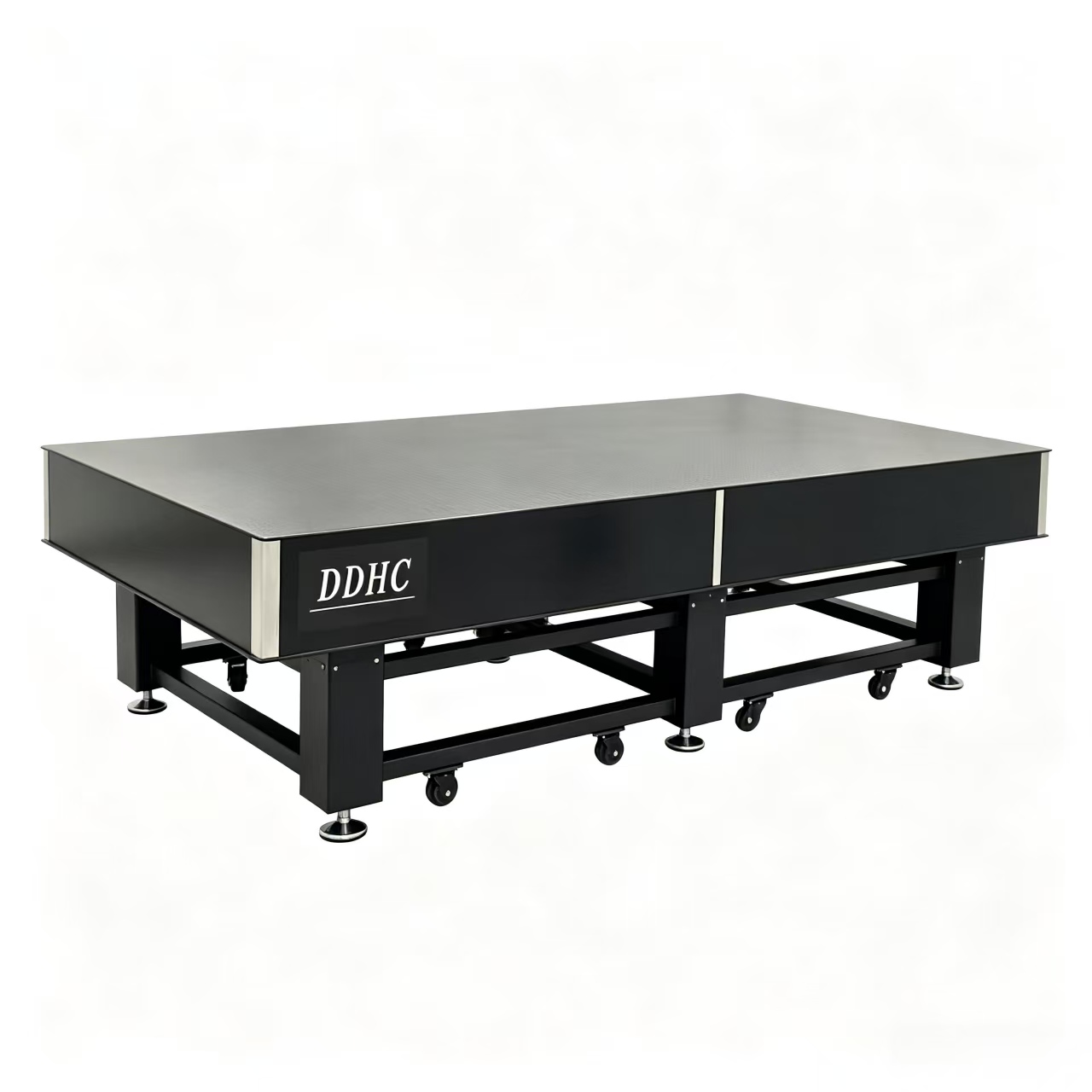

DVOP-T Series Three-Wire Pendulum Isolation Optical Tables
Model— Series中文页面 ↗
- Performance specifications:
- Natural frequency: 1.0–2.0 Hz vertical / 1.0–1.5 Hz horizontal
- Isolation: pendulum isolators + air springs
- Surface roughness < 0.8 µm, matte finish
- M6 metric mounting holes
- Hole spacing: 25 mm
- Height adjustment −10 to +15 mm
- Uses silent oil-free air compressor
+86 137 1698 9256 Ms. Liu · sally-liu@ddhc-tech.com
Custom and OEM designs are welcome — contact us for pricing and selection support.
Specifications
| Model | — Series |
|---|---|
| Series | DVOP |
| Category | Optical Tables & Breadboards |
| Source SKU | 12261334 |
Specifications shown are typical values; detailed drawings and full specifications are available on request. OEM and custom designs are welcome.
Functional Image
Typical dimensional drawings (from the official manual). Click to enlarge. Refer to factory drawings for exact dimensions; custom and OEM designs are welcome.
